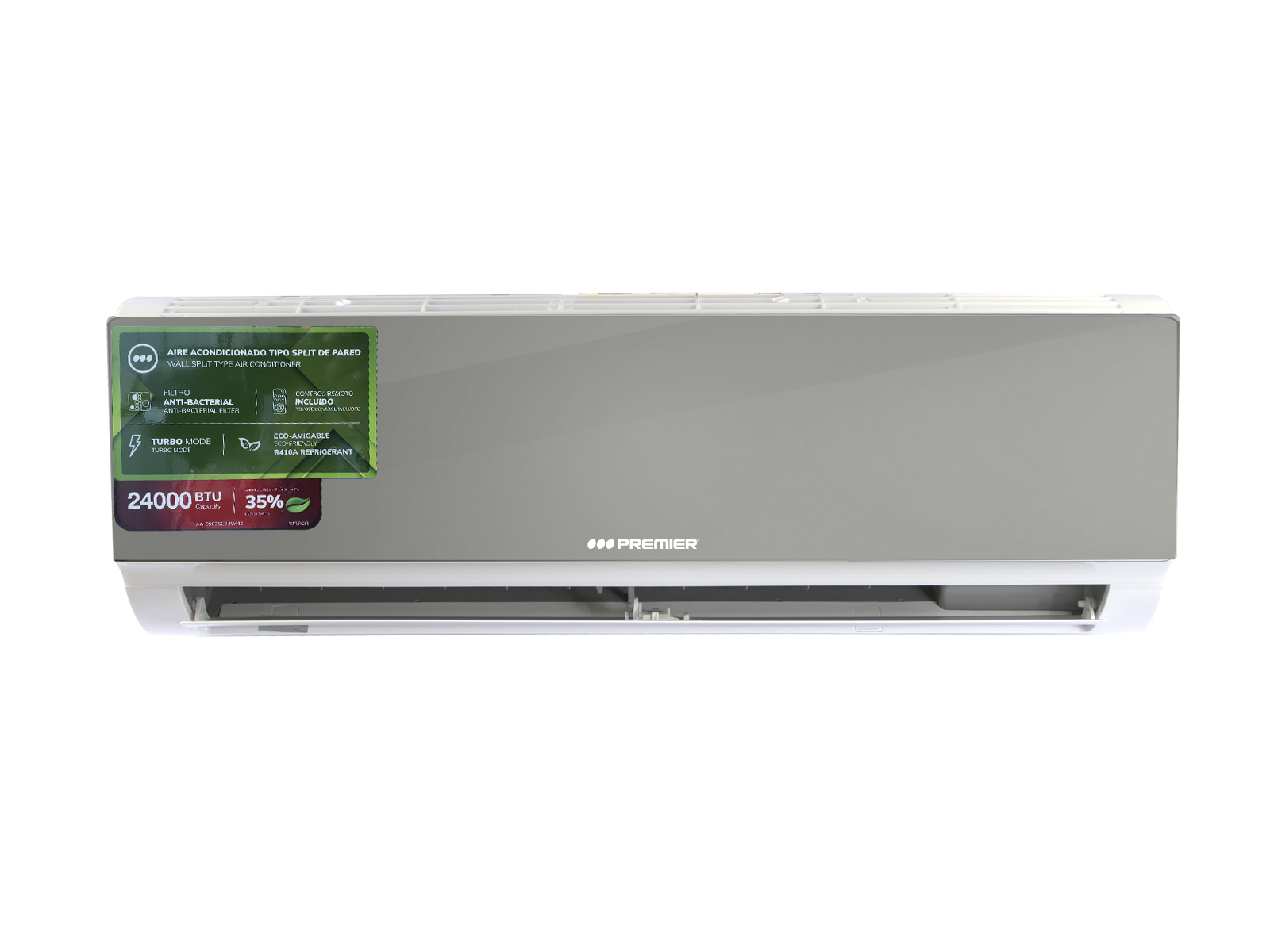

Aa split 24000btu (1+1) r410a

air conditioner (indoor unit)

feature: wall split 24000btu , cooling only, two way pipings, refrigerant leakage detection, r410a with 3m copper pipe & 1 pc remote control and 1 pc remote bracket , mirror panel

function

-with temperature display

-anti-bacterial filter

-automatic restart function

-sleep mode

-with golden fin of indoor unit and outdoor unit

-compensation of temperature

-turbo mode

specification:

-cooling capacity: 2500w/24000btu

-rated cooling power input: 3000w

-rated cooling current input: 15.5a

-noise level: indoor: 46/39.5/34.5dba, outdoor: 55.5dba

- real energy efficiency value: eer2.81

-climate type: t1 (max. 18℃ to 43℃)

-climate operation degree: 17℃ to 30℃

-air flow: (inside): 1000/800/630 (m3/h)

-refrigerant charge: r410a/1.05g

-design pressure (mpa): 4.2/1.5mpa

-application area (cooling standard) m2: 32 to 47m2

-panel: mirror panel with hidden display

unit dimension, weight:

-indoor unit body size: 1040x220x327mm (lxwxh)

-indoor packing size: 1120x405x315mm (lxwxh) n.w: 13.6kgs, g.w: 17kgs

-outdoor unit body size: 805x330x554mm (lxwxh)

-outdoor packing size: 920x410x620mm (lxwxh) n.w: 37.7kgs, g.w: 40.4kg

accessories:-

-with anti-bacterial filter (2 pcs for each indoor unit)

-1 pc remote control and 1 pc remote control handset and remote control bracket with batteries

color:-

indoor unit: mirror panel, grey body

remote control handset: same unit body color

input voltage:

-           single phase, ac220v/60hz (198v to 240v)

-           indoor unit included 1.5m electrical wire without ac plug, ul marking indoor unit electrical wire

-           3m electrical connecting wire between indoor and outdoor unit

-           3m copper pipe connecting indoor and outdoor unit (pack inside the outdoor unit carton box )

remark: electrical wire is with ul marking

voltage: ac220v/60hz

color: white

name: air conditioner split 24000btu r410a

model: aa-6962sc24wn2 mirror

capacity: 24000btu

color and design: white

voltage: ac220v/60hz

functions:

- with temperature display

- climate type: t1 (max. 18°c to 43°c)

- refrigerant: r410a/1.05g

- auto-restart function

- anti-bacterial filter

- sleep mode

- automatic restart function

- turbo mode

- cooling capacity: 7033w/24000btu

- rated cooling power input: 3000w

- rated cooling current input: 15.5a

- dehumidifying capacity (l/h): 1.2 l/h

- noise level: indoor: 42dba

- noise level: outdoor: 52dba

- climate operation degree: 17℃ to 30℃

- compensation of temperature

accesories:

-           anti-bacterial filter

-           1 pc remote control

-           1 pc remote bracket
