Abanico 18" de pedestal, negro

fan

feature: 18 inch stand fan

-with 5-wings plastic knife blade

-with switch controller, 3 speeds, switch (0, 1, 2,3)

-without timer

-left and right swing 60°~70°, with control buttom. tilt angle below 10 °

-adjustable height setting as per ev sample

-plastic front net - outer diameter: 49.5cm, height: 8cm

-plastic back net - outer diameter: 48.5cm, height :6cm

-front/back net- total weight: 630g

-fan 5 pcs blade thickness: 1.8-3.0mm, weight 140g, 17.2 inch

-with plastic round base (without weight block ) : diameter: 48.5cm, weight 860g

-product height: 126cm (the highest height)

-lower tube (with painting): diameter: 38mm, length 56cm, thickness: 0.35-0.40mm(with coating)

-extension tube (iron plating), length 38cm x diameter 25mm, thickness 0.26~0.33mm (not less than 0.3mm)

-pass 10° tilt test

-motor with fuse protection

material:

material for fan blade: pp material for neck joint: pp material for motor cover: pp material for (front & back net): pp material for round base : pp

color as below

- main color : blue

- fan blade: blue

- front and back net : blue

- front brand board: blue

- front plactic screw fixed the fan blade: blue

- motor cover : blue

- neck joint : blue

data:

- motor power: low(1) 56w, low(2) 63w, low(3) 67w, set as

67w

- motor in aluminum wire in copper coating color, size: 71

(l) x 71(w) x 20(h) mm with fuse

- motor rotation speed (with loading blade): high(3):

1260rpm / mid(2) 1130rpm / low(1) 961rpm

- high (3) wind speed: 4.4m/s

- mid (2) wind speed: 3.9m/s,

- low (1) wing speed 3.0m/s

the wind speeds for mass production according to the ev

sample (measured at 1m distance)

- noise level : 78db

voltage: ac110v/60hz – with nomal 2 flat plug, 157cm

outside long. not include plug, must work properly in

ac100v ~ac135v/60hz (ev passed)

color: black

voltage: ac110v/60hz

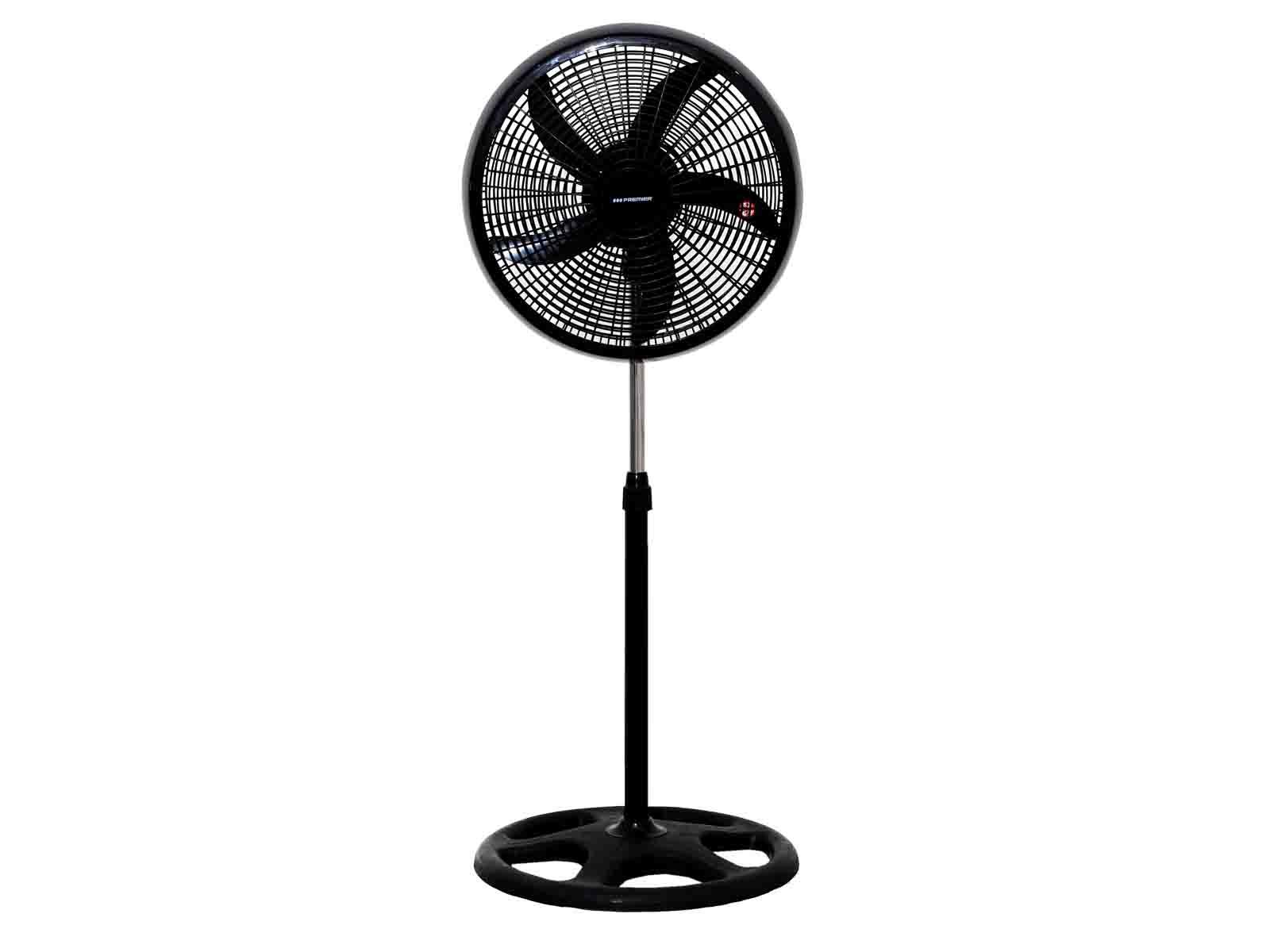

name: 18" stand fan, black

model:  ab-7921(b)

color and design: black

voltage: ac110v/60hz

functions:

-           5-wings plastic knife blade

-           with 3 speeds, switch controller (0, 1, 2,3)

-           adjustable height

-           power: 70 watts

-           weight: 145g

-           height: 126cm

-           cross feet with foot pad

-           motor with fuse protection
