Abanico de pared (18in)

fan

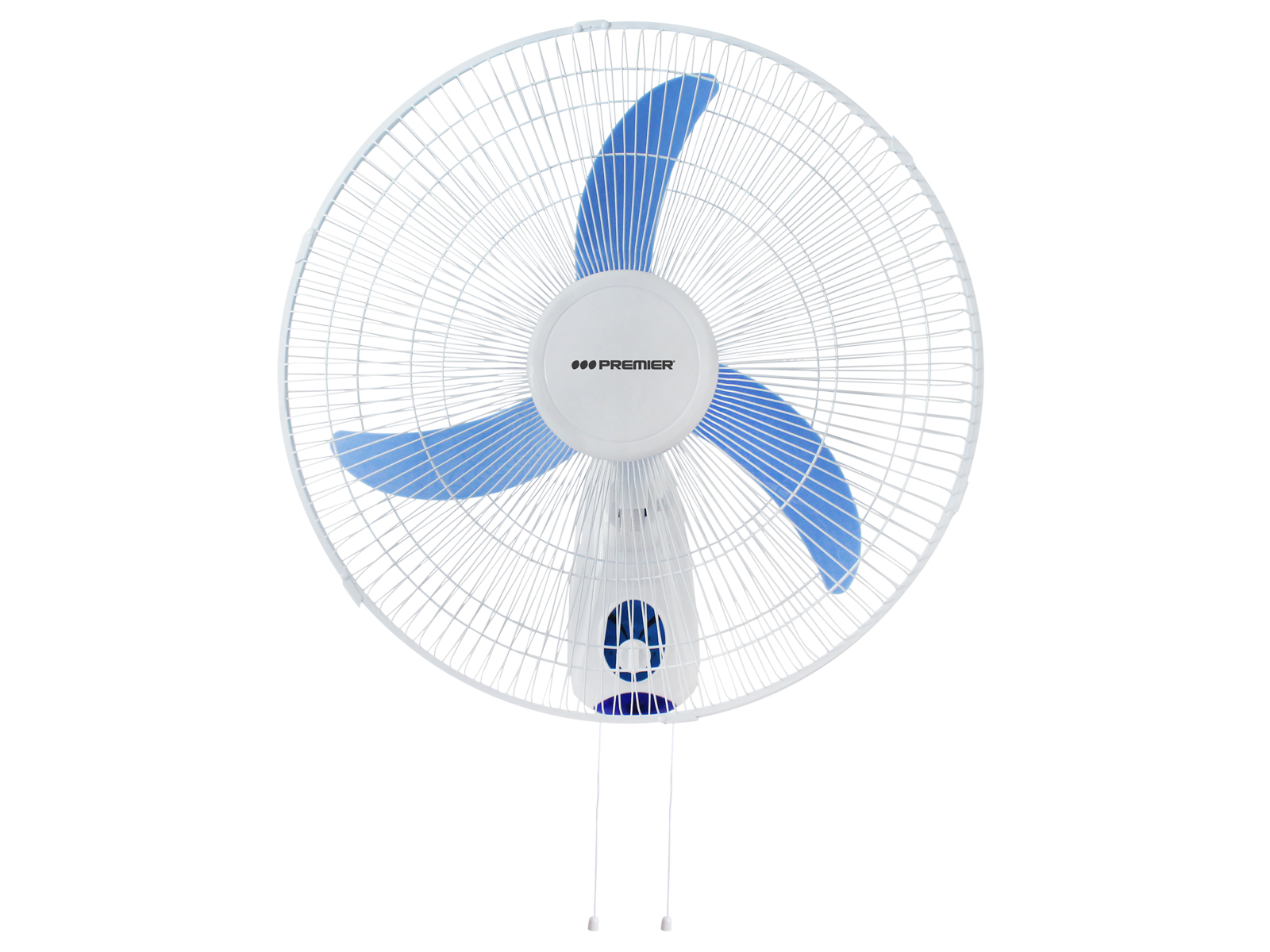

feature: 18 inch wall fan

-               with 3-wings plastic blade

-               with switch controller, 3 speeds, switch (0, 1, 2,3)

-               with pulling rope function (length 29cm)

-               without timer

-               left and right swing 60°~70° , with control buttom. tilt angle below 10 °

[*must use tuning knob to lock the angle adjustment of fan head.]

-               bottom shell size: 24*11.2cm, net cover diameter: 50.3cm, 135 net cables

-               fan blade thickness: 2~2.4mm, weight : 90g,

-               fan blade is plastic, 17.6" fan blade, fan front net wire diameter: 1.6mm (with coating), back net wire diameter : 1.2mm

-               the weight of the front and back nets : 970g

-               the height of the front net 88mm

-               the height of the rear net is 58mm

-               the interval between the brackets 8~9mm

-               the hook piece t is 0.9mm

-               with 5 pcs clips [free net] around the grill.

-               motor with fuse protection

material:

material for fan blade: plastic material for neck joint: pp material for motor cover pp material for front & back net): pp

color as below

-               main color in white

-               fan blade in blue color

-               front and back grill in white

-               front brand board in white

-               panel in blue color, marked 0.1,2,3

-               motor cover white

- neck joint in white

all data as per ev sample test:

power:50+/-5w watts (around)

motor in copper coating aluminum wire, size: 71(l)x71(w)x20 (h)mm with fuse

motor rotation speed (with loading blade): around 1250±50rpm

wind speed according to the ev sample

voltage: ac110v/60hz

cable: 2 * 0.5mm² with 2 flat pinl plug (one big) l = 145cm (excluding plug)

color: blue

voltage: ac110v/60hz

name: wall fan 18”

model: ab-7297wm(l)

color: blue

voltage: ac110v/60hz

functions:

-           with 3-wings plastic blade

-           with switch controller, 3 speeds, switch (0, 1, 2,3)

-           with pulling rope function (length 29cm)

-           motor with fuse protection
