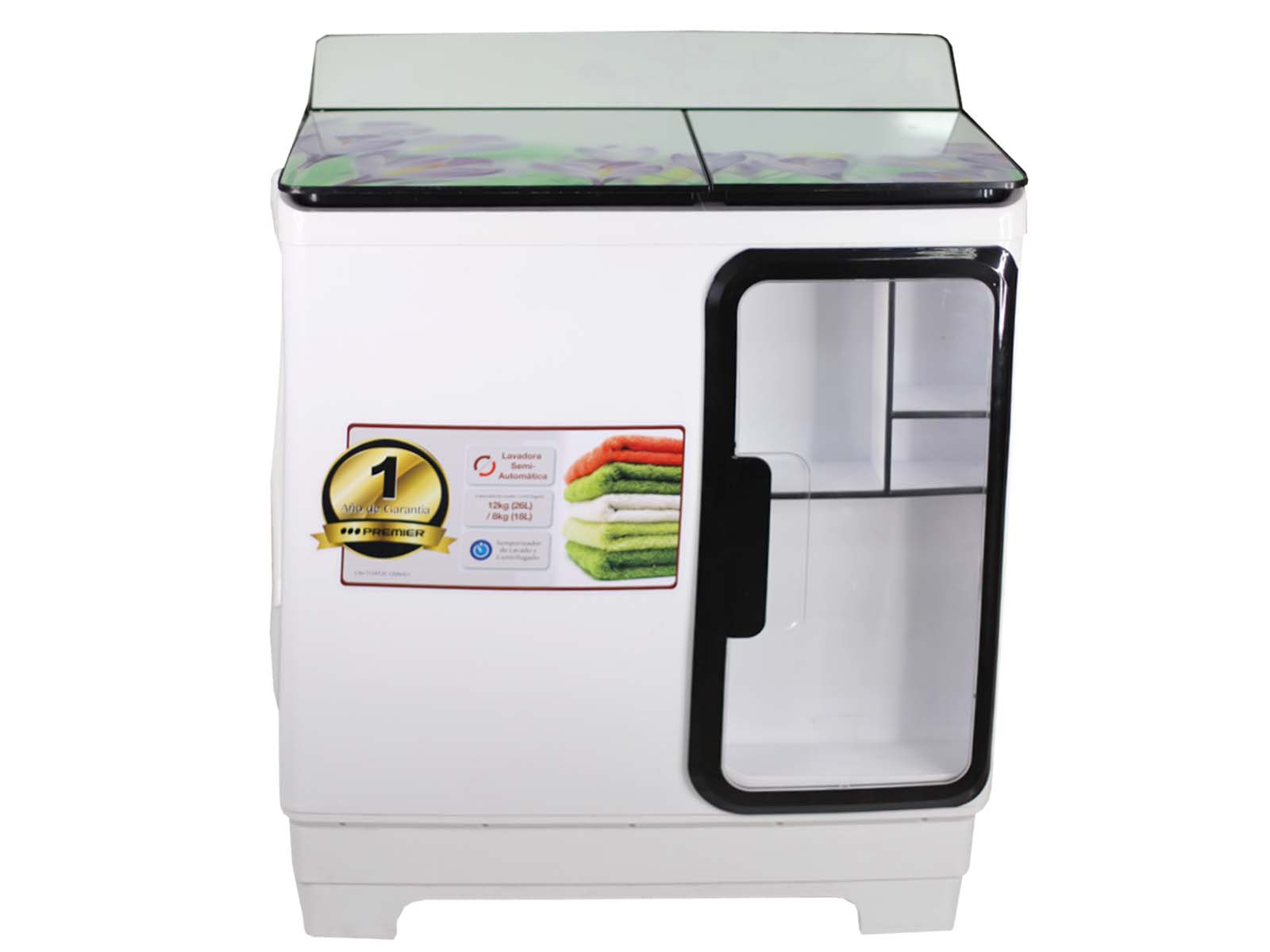

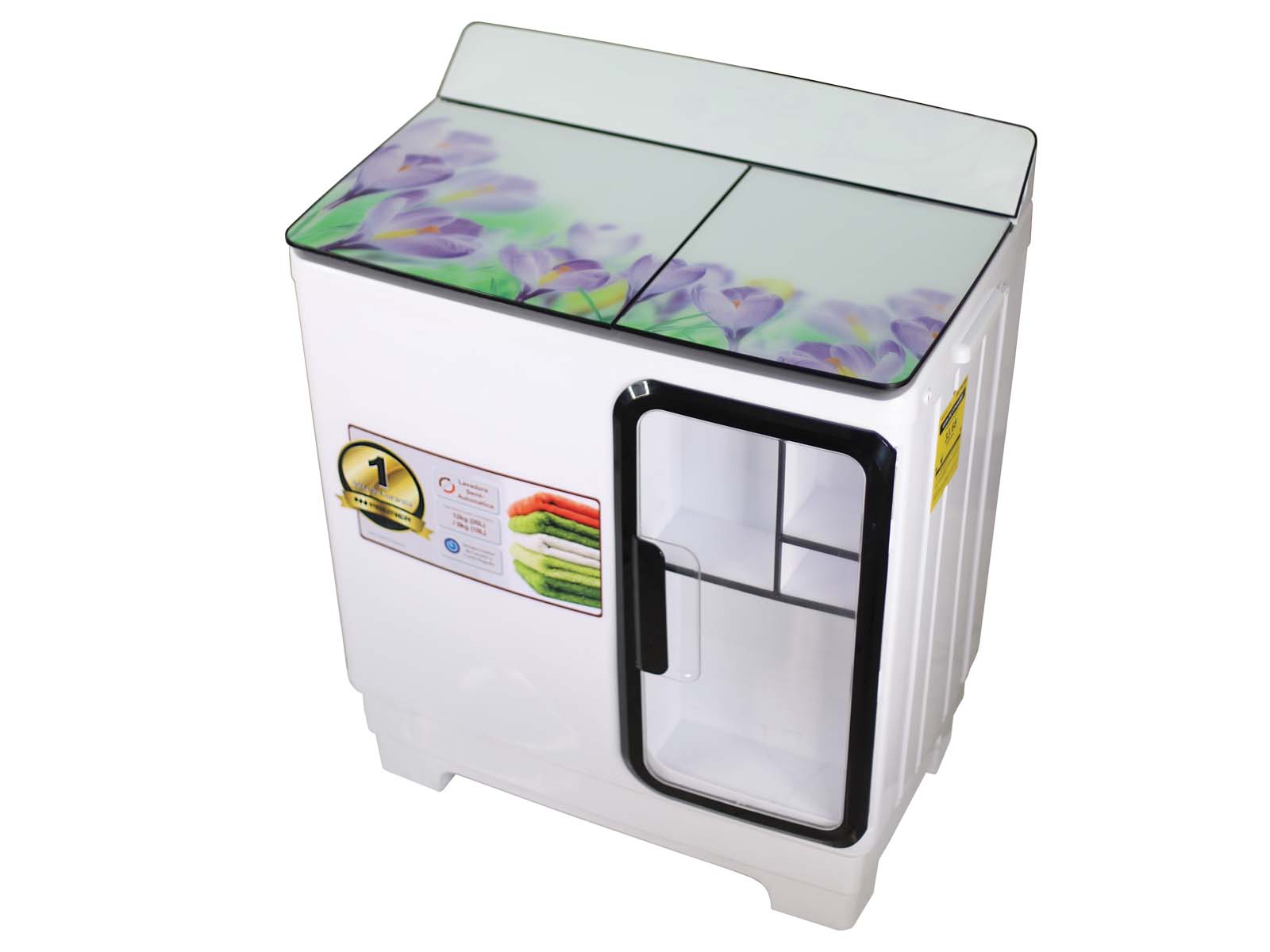

Lavadora semiautomatica 12kg

washing machine (12 kgs)

feature: semi automatic washing machine

-           wash capacity : 12 kgs

-           spin capacity : 8 kgs

-           twin tub with glass lid

-           with two (2) top water inlet

-           with filter net

-           with storage room with door (front side)

-           with pump

-           with fuse protect for wash and spin motor

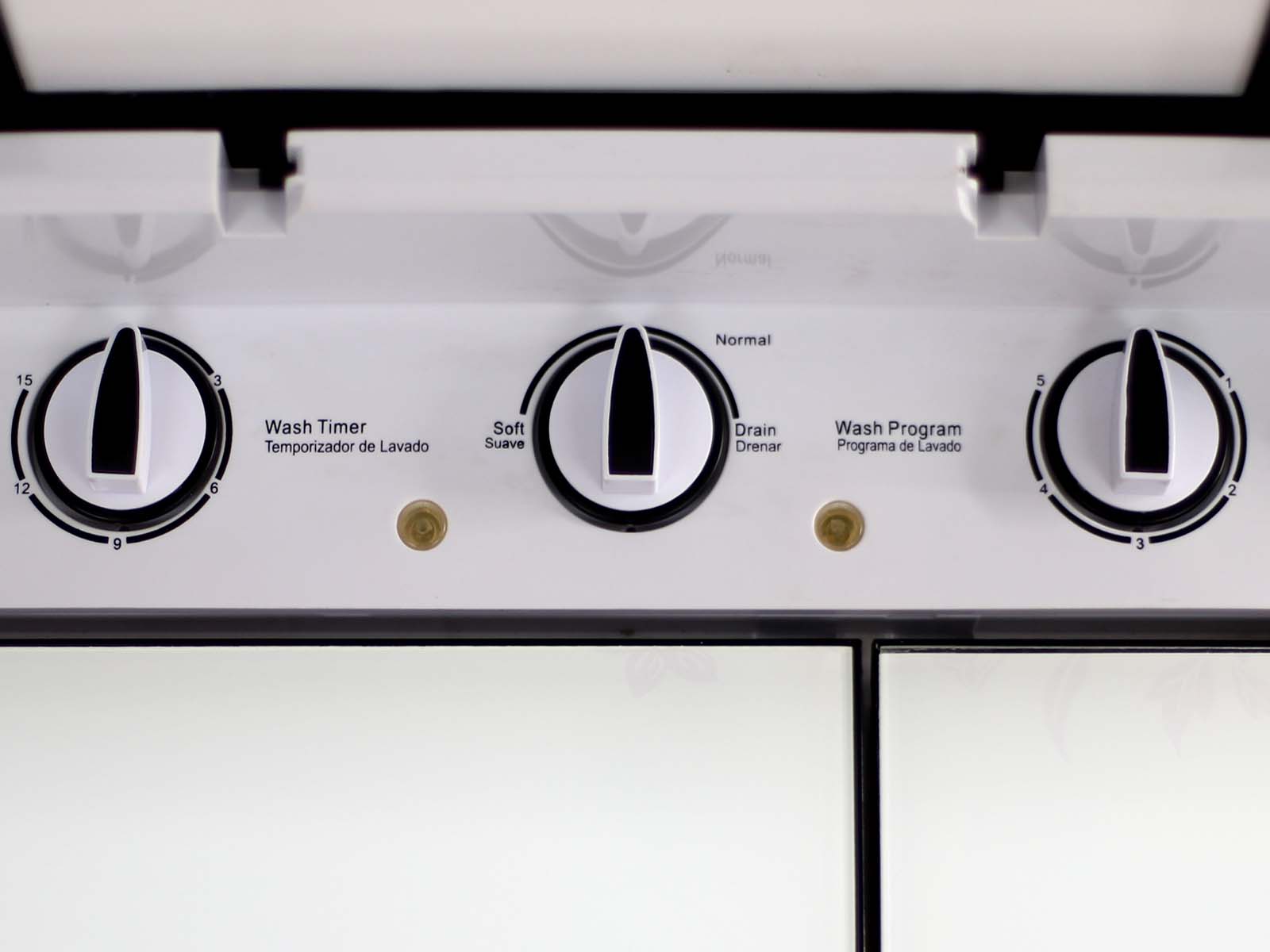

-           with 4 knobs

-           with 2 program (wash/spin)

-           with timer

-           with water level indicate (h, m, l)

-           wash time (15 mins)

-           spin time (5 mins)

-           wash timer with non-flame retardant (mechanical)

-           spin timer with non-flame retardant (mechanical)

with fixed wash lid

-           with fixed spin lid\ material:

-           material of control panel: abs

-           material of all tempered glass door cover (wash/spin)

-           material of frame, body & base: pp plastic

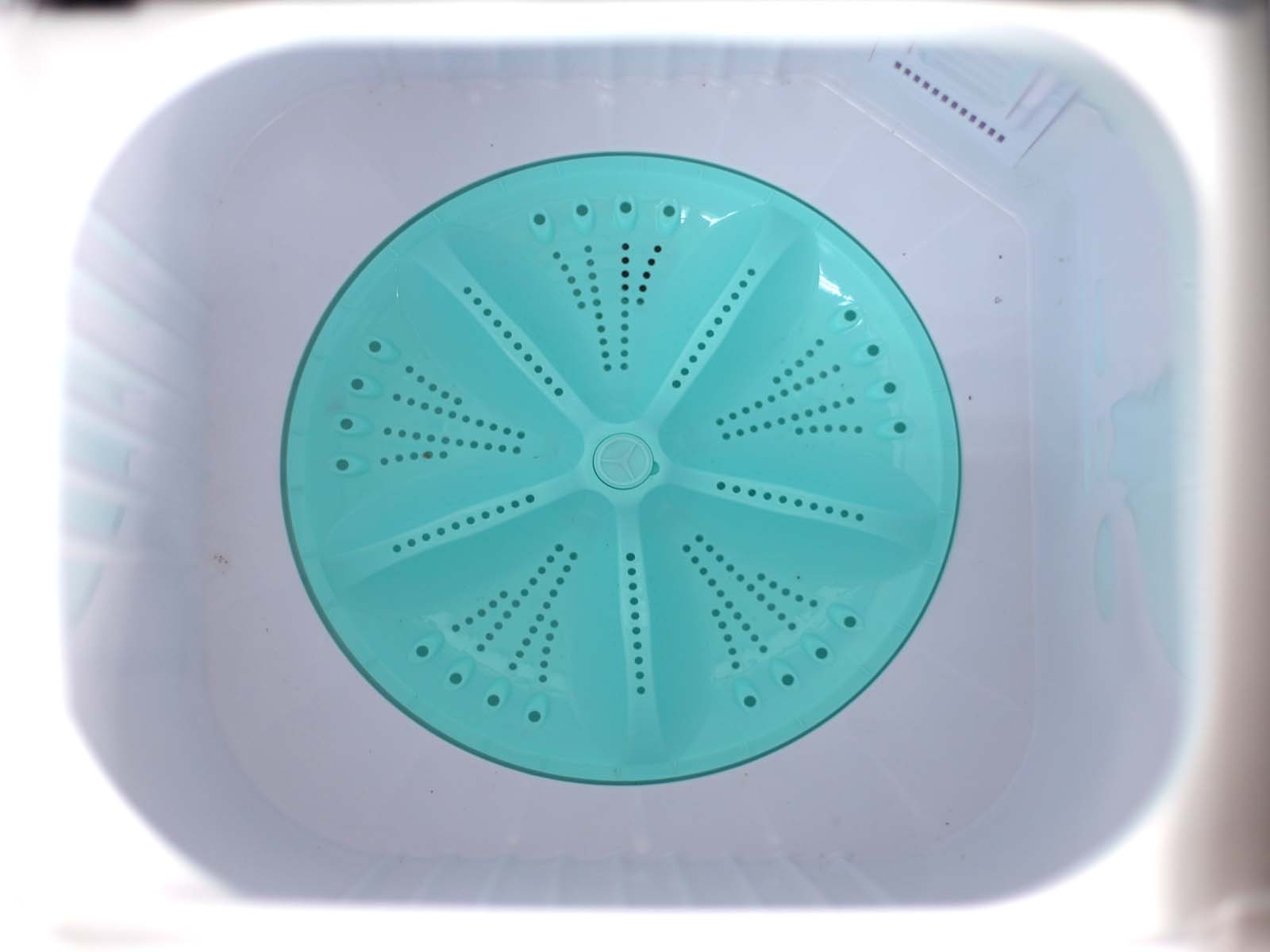

-           material of pulsator: pp plastic

-           all pipe thickness 0.5mm above, cannot less than 0.5mm (must same as ev sample (tested by ccl ev report mentioned)

unit size:

-           unit size (l x w x h) : 835 x 535 x 1010 mm (ev measure)

-           wash tub size: 458x468x500mm (ev measure)

-           spin tub size: inner diameter : ø255x400mm (ev measure)

color must same as quotation picture:

-           whole unit in white color

-           the storage box frame with black color

-           control panel in white color

-           control panel silk print color black

-           wash/spin cover silk print color same as confirmed glass door design

-           knob color

-           all glass door flower printing design cannot have any chinese wording

data:

-           motor (wash tub) for wash : input/output power : 360w/180w

-           motor (spin tub) for spin: input/output power: 160w/60w

-           wash motor in full aluminum material

-           spin motor in full aluminum material

-           wash motor rotation speed : about 1320rpm

spin motor rotation speed: about 1320rpm

- cable: total length: 180cm, outside length about 155cm

voltage: ac110v/60hz with ul approved 3 pin plug. (*with one round pin and two flat pin), the plug and cable with ul marking

color: white

voltage: ac110v/60hz

name: washing machine semi automatic 12kg

model: lav-7134t2c12dwg1

wash capacity: 12 kg

spin capacity: 8 kg

color: white

voltage: ac110v/60hz

dimensions: 835 x 535 x 1010 mm

functions:

• twin tub with glass lid
• motor input power (rated wash/spin): 360w/180w
• motor output power (wash/spin): 160w/60w
• wash/spin motor rotation  speed: 1320 rpm
• spin time: 5min
• wash time: 15min
• with 2 water inlet
• with lint filter
• temperature protection
