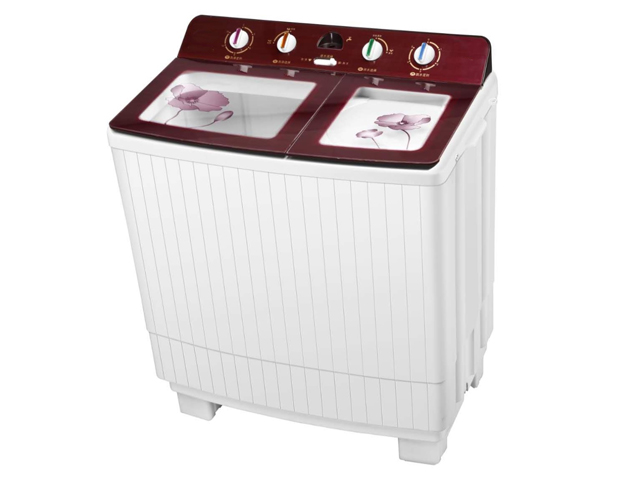

Lavadora semiautomatica 15kg

washing machine

feature: semi automatic washing machine (twin tub)

-           double-barrel

-           single layer

-           with two (2) water inlet

-           with lint filter

-           with fuse

-           with 4 knobs

-           with 2 program (wash/spin)

-           three water level indicate

-           wash time (15 mins)

-           spin time (5 mins)

-           waterproof grade : ipx4

-           wash timer with fire retardant (mechanical)

-           spin timer with fire retardant (mechanical)

-           with fixed wash lid

-           with fixed hinged spin lid

-           material of control panel: abs+glass

-           material of cover : tempered glass/abs flame

-           material of top lid: tempered glass/abs flame

-           material of frame ,body & base: pp plastic

-           material of pulsator: pp plastic

-           material of base : pp

-           with pump

-           all pipe thickness : 0.3mm to 0.8mm

-           unit dimension: 920x550x1015mm (ev measured)

-           wash tub size: 480x520x530mm (ev measured)

-           spin tub size: inner diameter :φ265x370mm

-           pulsator d(mm) : φ390 mm

-           wash level (h/m/l) : 108l/93l/75l

wash and spin capacity:

tub volume (capacity): (rated wash/spin) 15kgs/6.5kgs

color:-

-           whole unit in white color (body)

-           control panel color in white+brown glass

-           control panel silk print in white color

-           knob color : as per ev sample

-           whole top cover (wash/spin) in brown glass

-           base color : white.

spec and data:-

-           motor input power (rated wash/spin): 480w/250w

-           motor output power (rated wash/spin): 250w/80w

-           wash motor in full aluminum material

-           spin motor in full aluminum material

-           spin timer must 5a spec

-           wash motor rotation speed: 1600rpm

-           spin motor rotation speed: 1600rpm

-           wash motor spec: xd-250 110v/60hz 250w 4.5a, 55uf/450vac, class b

-           spin motor spec: yyg-80 110v/60hz 80w 1.8a, 16uf/450v, class b

-           temperature protection spec: 135 °c

-           fuse : 10a

-           cable: total length: 180cm

voltage: ac110v/60hz with ul approval 3 pin plug (1 round, 2 flat pin)

color: white

voltage: ac110v/60hz
