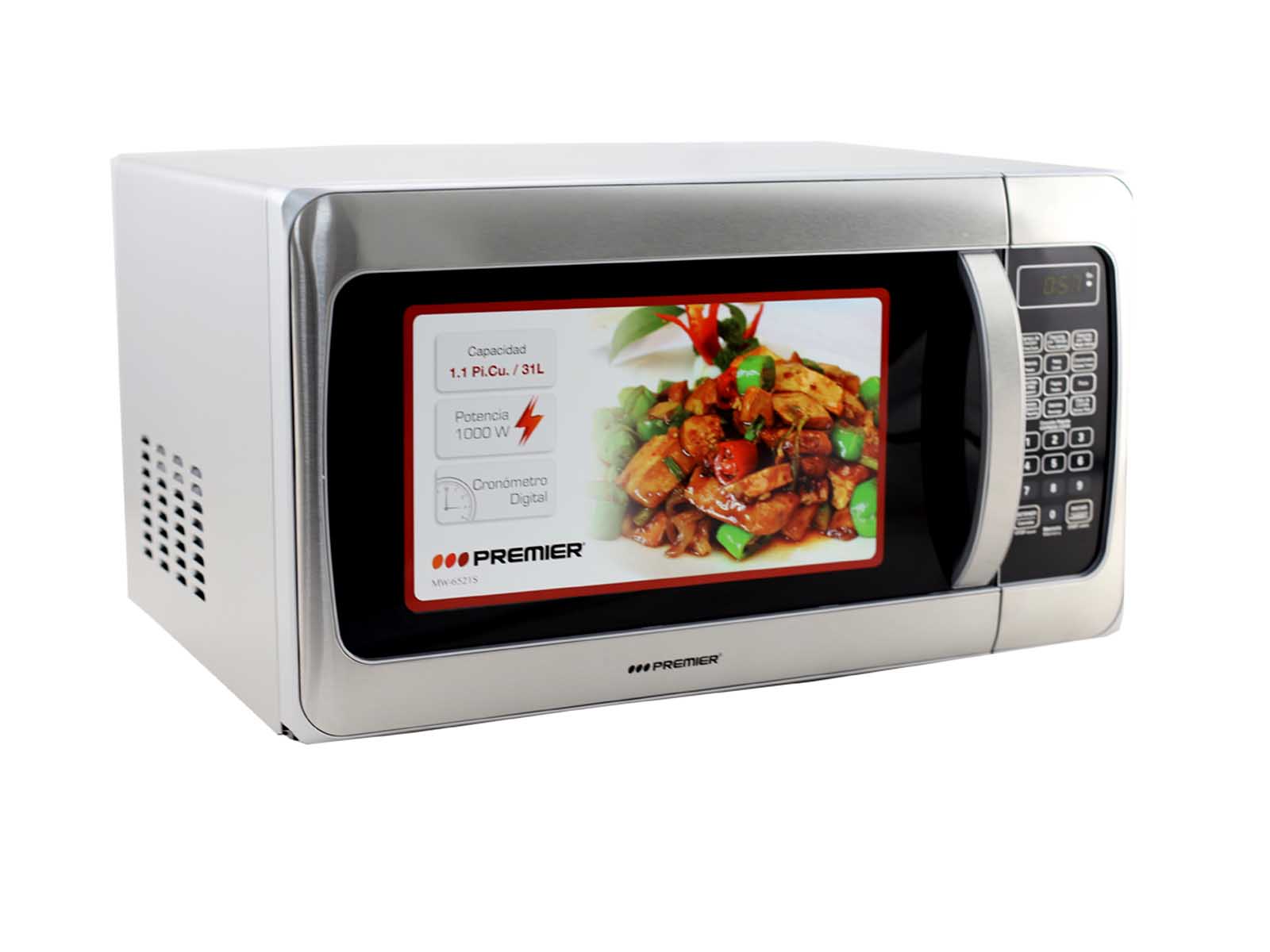

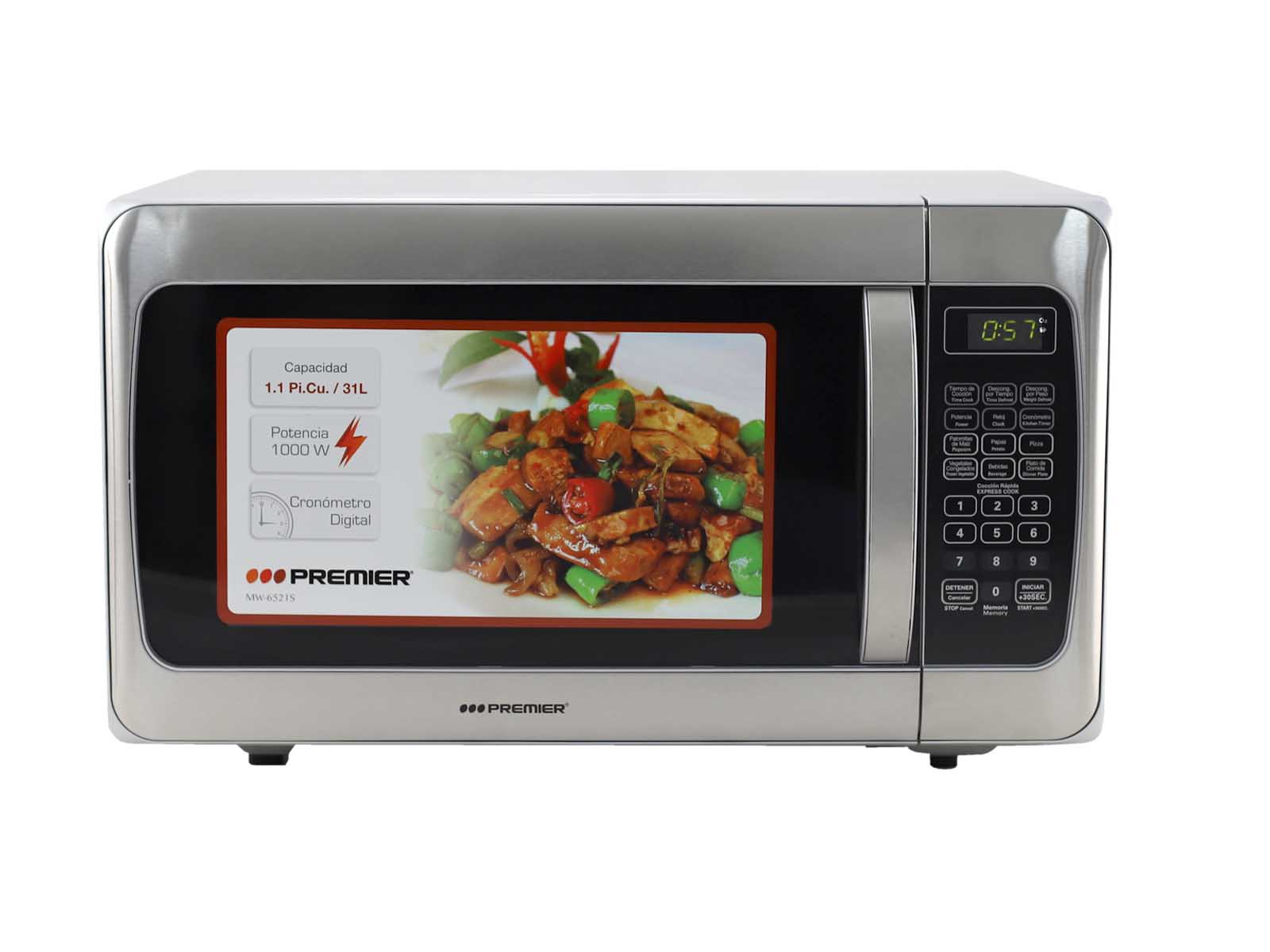

Microondas 31l/1.1pc

microwave oven

oven capacity: 31l (1.1 cu.ft.)

- 10 adjustable power levels

- 6 one-touch preprogram settings (popcorn, potato, pizza, beverage, frozen vegetable & dinner plate) allow quick and easy preparation

- time defrost & weight defrost

- digital clock (led display)

- digital timer: 99 min. 99 sec.

- express cooking

- reset function

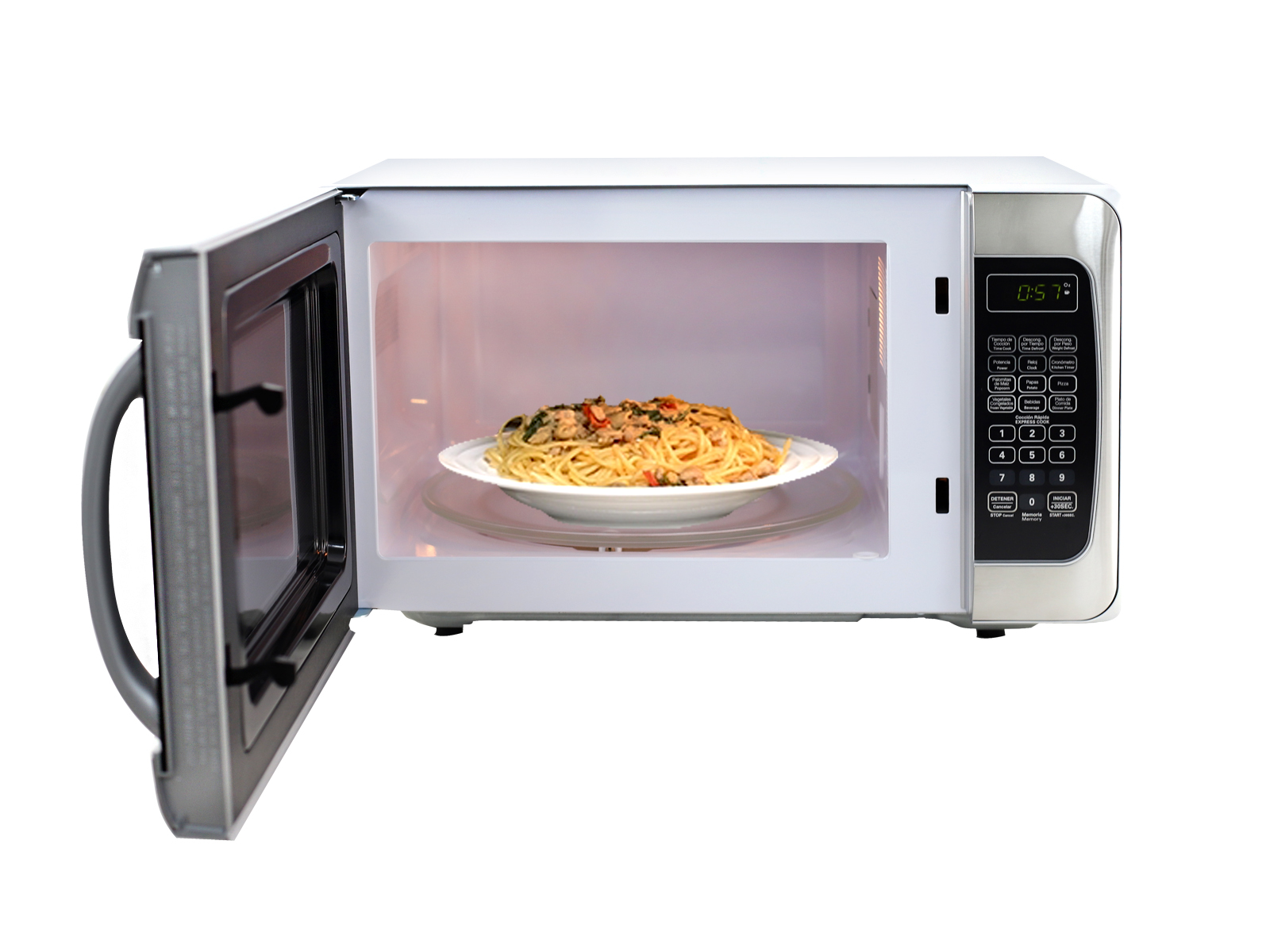

- glass turntable

- end cooking signal

- remind cooking signal

- child lock prevents unsupervised operation

- without cord storage

- with 2 pcs rubber feet

appearance:-

interior cavity: white

exterior cavity: silver front & cover

open method: pull handle

door frame: silver

door glass: normal

cover: silver

handle (plastic): plastic with s.s. decoration

oven frame: white

cavity material: painted steel

turntable material: toughened glass (diameter: 315mm, thickness: around 6mm, weight: 750g)

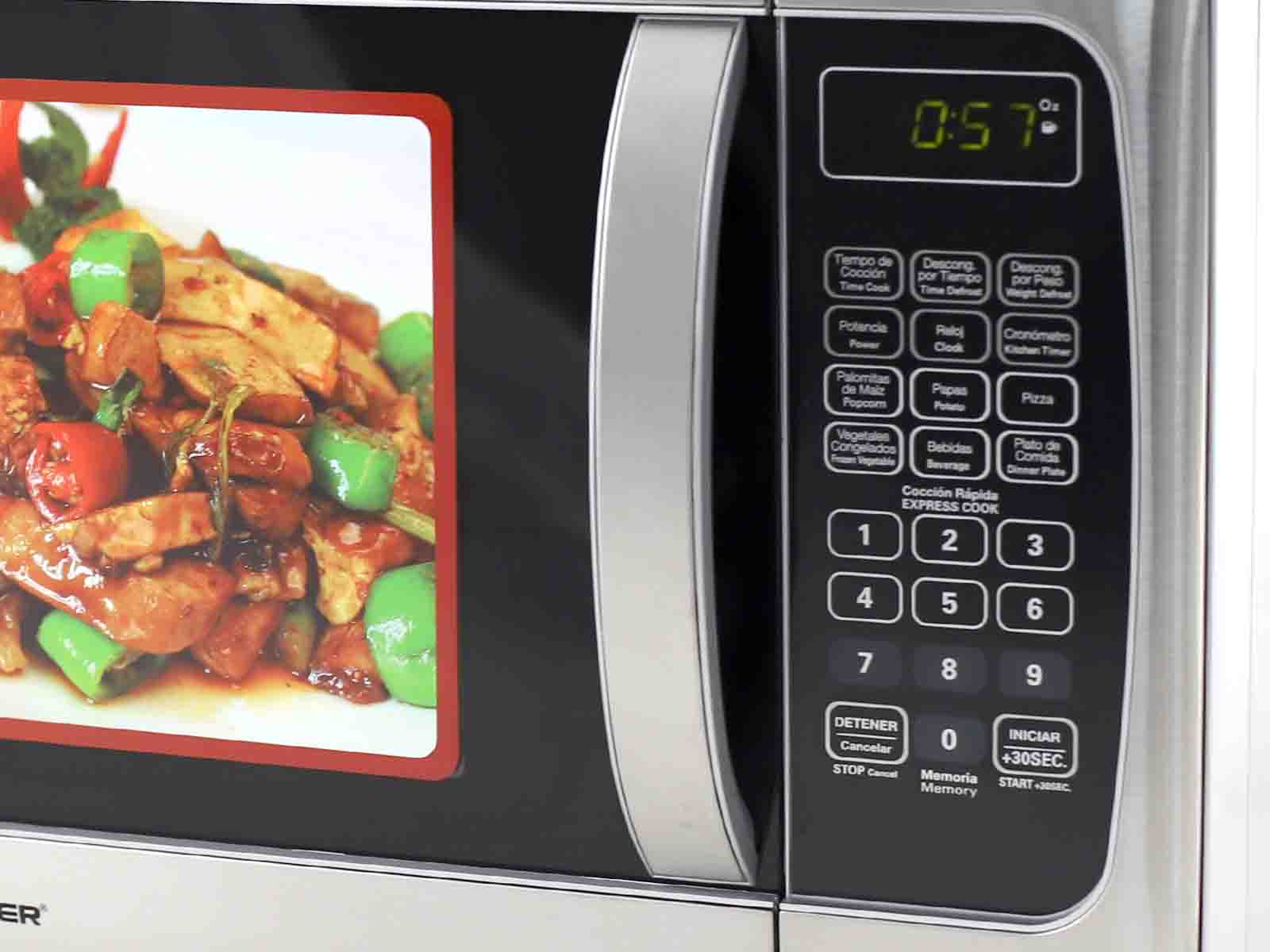

control type: membrane, electronic touch (digital control)

control panel and door (pet) finishing: "normal" (not mirror)

* printing language on control panel: spanish + english

approval: ul certificate, (electro magnetic compatibility)

product size (outer size): 51 x 36.5 x 30.5cm (l x w x h)

product size (inner size): 35.5 x 35.4 x 25cm (l x w x h)

- with fuse protection

* fuse: 20a 125v ul 611 pse

* thermostat: ksd 160℃ ul vde cqc / ksd201 160℃ ul tuv

* magnetron: 2m219je622

* micro-switch: kw3a 16gpa 125/250vac 40t 105 5e4 1/3hp 125vac 10a 30vdc 16(4)a "ul" *3pcs

* h.v. capacitor: ch85 21075 2100v ac 1.00uf±3% b 10/85/21 50/60hz vde cqc

* h.v. diode: cl01-12 rg804

* turntable motor: tyj50-8 a19 e199324 ul z.p100-120v 50/60hz 4w 4/4.8rpm

* fan motor in full copper wire: mdt-08a 120v/60hz 20w ul e305803 (60 x 9mm)

* lamp: 2a 250v nz187 125v 20w ul e305803

* h.v. transformer): md-901amr-1 objy2 e306927 120v/60hz class 220 ul actual measured size: 74 x 96 x 80mm

* main pc board i.c.: emxeeww-01-k

* power board: ee16-2.7mh

color combination:

body color: silver

1. panel background: black

2. inner square border: white

3. outer square border: silver

4. text on panel: -

- 1, 2, 3, 4, 5, 6, 0 number keys in white (white circle)

- 7, 8, 9 number keys, "start / + 30 sec., stop / cancel" & other keys in black (white circle)

- cooking function keys in pantone 'cool grey 11c

(* control panel color & artwork to be confirmed by email.)

5. led display in yellow / green color

6. rubber feet in black color

output power: 1000 watts

power consumption: 1500 watts

cable in black color with full copper wire: (ul) e228636 spt-2, 105°c, 18awgx3c, outside length 100cm long [measured not included the plug], total length 120cm [included plug].  with ul (e206175) 3 pins plug (1 round pin and 2 flat pins)

voltage:ac120v/60hz

color: silver

name: microwave 31l/1.1cf

model: mw-6521s

color:  silver

capacity:  31l (1.1 cu.ft.)

features:

• 6 one-touch preprogram settings (popcorn, potato, pizza, beverage, frozen vegetable & dinner plate) allow quick and easy preparation
• 10 adjustable power levels
• child lock prevents unsupervised operation
• end cooking signal
• express cooking
• time defrost & weight defrost
• glass turntable
• digital clock (led display)
• reset function
• digital timer: 99 min. 99 s
• 2 rubber feet

power: 1500 watts

voltage: ac120v/60hz

dimensions: 51 x 36.5 x 30.5cm (l x w x h)
